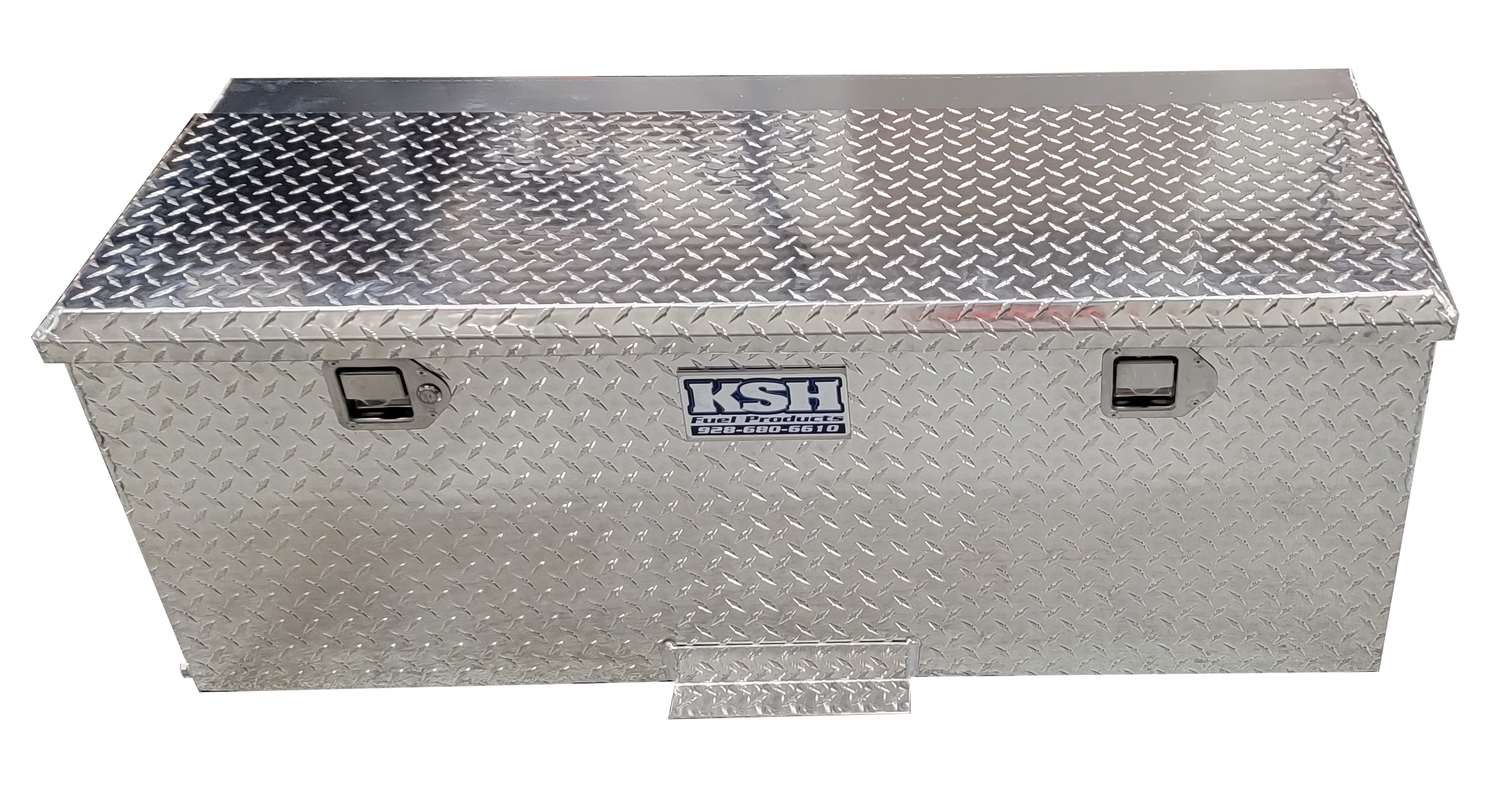

Our Toolbox/Auliliary Fuel Tank Combo's come in standard sizes of 40, 45, 60, 65 and 98 Gallons. Custom sizes are available through quote forms.
| Capacity |
Length (Side to Side) |
Width (Front to back) |
Toolbox Depth | Height | |
| 40 Gallons |
60" ** | 15" - 20" *** | 9-1/4" | Bed Height | Specific for Short Bed Dodge/Ram |
| 45 Gallons | 60" ** | 20" | 9-1/4" | Bed Height | Does NOT fit short bed Dodge/Ram |
| 60 Gallons | 60" ** | 22" | 8" | Bed Height | Does NOT fit short bed Dodge/Ram |
| 65 Gallons | 60" ** | 24" | 8" | Bed Height | Long Bed Trucks Only |
| 98 Gallons | 60" ** | 32" | 6-1/2" | Bed Height | Long Bed Trucks Only |
**Tank may have a taper of 60" at rails and 55" on the bed depending on the year and model of your truck
*** Tapered specific to Dodge/Ram - Short Bed.
Fittings on your tank will be specific to the fuel transfer system you choose - Your fittings may be different than the photos seen here.
All models are made of .125-gauge polished aluminum diamond plate. KSH Toolbox/Auliliary Fuel Tank Combo's are made with two baffles to control fuel sloshing and to provide added stability.
Product Terms and Conditions: All items are built to order. When you order a special-order item it sets off a chain of events like Willie Wonka in the chocolate factory. Once you turn the valve the chocolate is coming down the pipe. If you then decide you want strawberry, the chocolate is still going to come out of the pipe. We can't put the chocolate back in the pipe, so someone is going to have to eat it, and it's not going to be us! Your order cannot be canceled, returned, or magically changed into strawberry, so please order carefully the first time!
Payment terms & conditions: A 50% nonrefundable deposit of the product cost will be required at the time of order to begin the build process. The remaining balance will be due at the time of completion. We Proudly Accept Visa, Discover and Master Card.
*American Express will incur a 5% convenience fee per transaction
